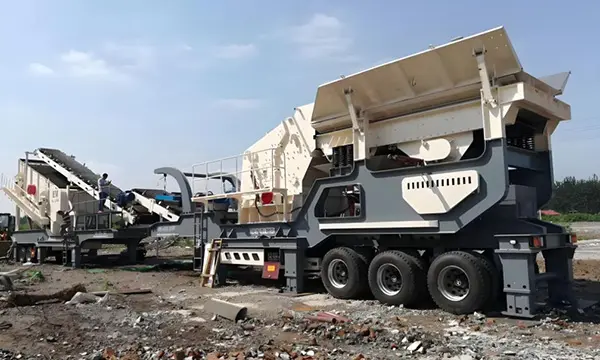

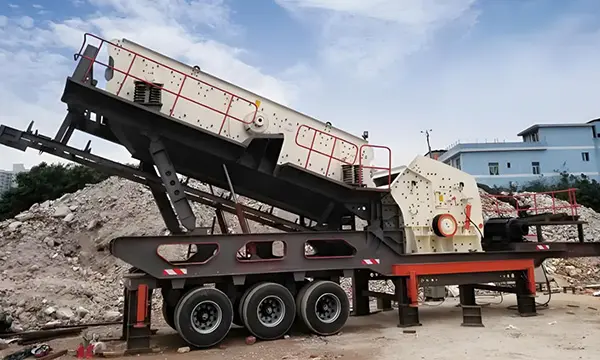

S Series Mobile Impact/Hammer Crusher
Working Principle
Mobile impact crusher /hammer crusher use impact energy to break materials, work, driven by the motor, the rotor of the impact crusher high-speed rotation, the material into, and the rotor on the plate hammer impact broken, and then be countered to the lining plate again broken, and finally discharged from the discharge port. The user can adjust the gap between the counter frame and the rotor frame to achieve the purpose of changing the particle size and shape of the material.
Characteristic and feature of S series mobile impact crusher / hammer crusher:
(1) The equipment configuration is flexible, it can be independently produced by a single unit, and can also be combined with rough and broken equipment. The diesel generator equipped in the mobile crusher unit can not only supply power to the unit, but also configure the unit joint power supply to the process system, which greatly improves the adaptability of the equipment.
(2) The vehicle chassis of the medium crusher unit is higher, the body width is less than that of the operating semi-trailer, and the turning radius is small, which is convenient for driving in the rough and harsh road environment of the crushing site, and is more conducive to entering the construction area.
(3)The configured impact crusher can not only crush certain first-line materials on the spot, but also directly produce the ideal particle size of sand and stone finished products, and reduce the transfer and transportation costs of materials while expanding the scope of work. In addition, the extension unit of the mobile crusher can also directly feed the broken materials into the transfer truck bucket, which is convenient for timely transportation.

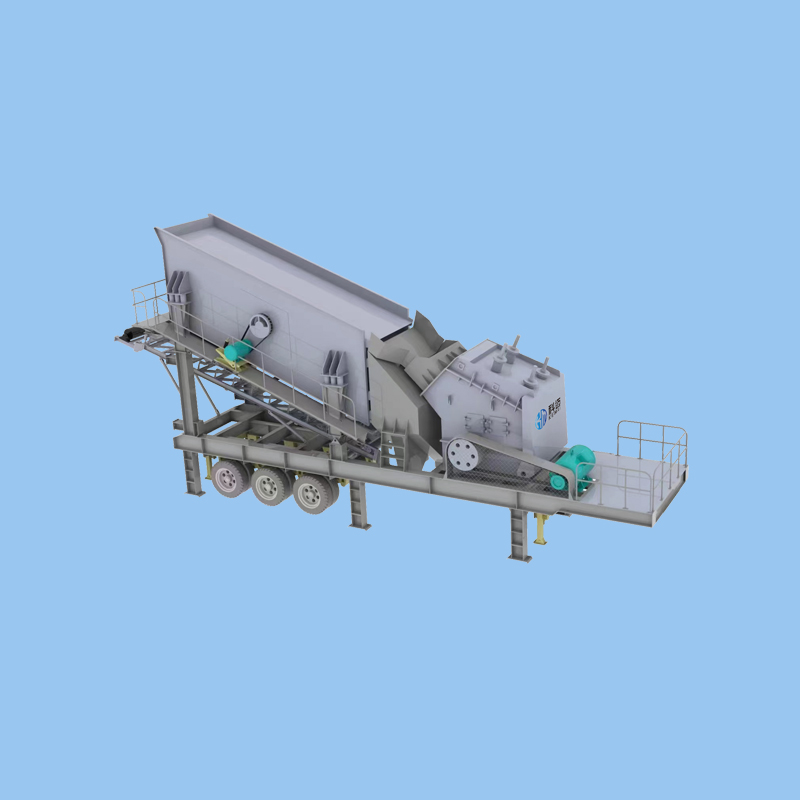

(4) The equipment installation of the crusher unit is integrated, the overall coordination is strong, the space layout is reasonable and compact, saving time and space for the site construction, improving flexibility, and eliminating a lot of site infrastructure, greatly reducing investment costs, and easy operation and maintenance. Unit configuration equipment division is clear, simple and clear, easy to maintain. Working principle When the crusher is used for crushing operation, the crushed material is broken directly from the impact crusher to the medium-fine particle size, and the closed-circuit screening circulation system composed of the circular vibrating screen directly produces the ideal finished sand and stone, and finally outputs it to the designated place by the conveyor.

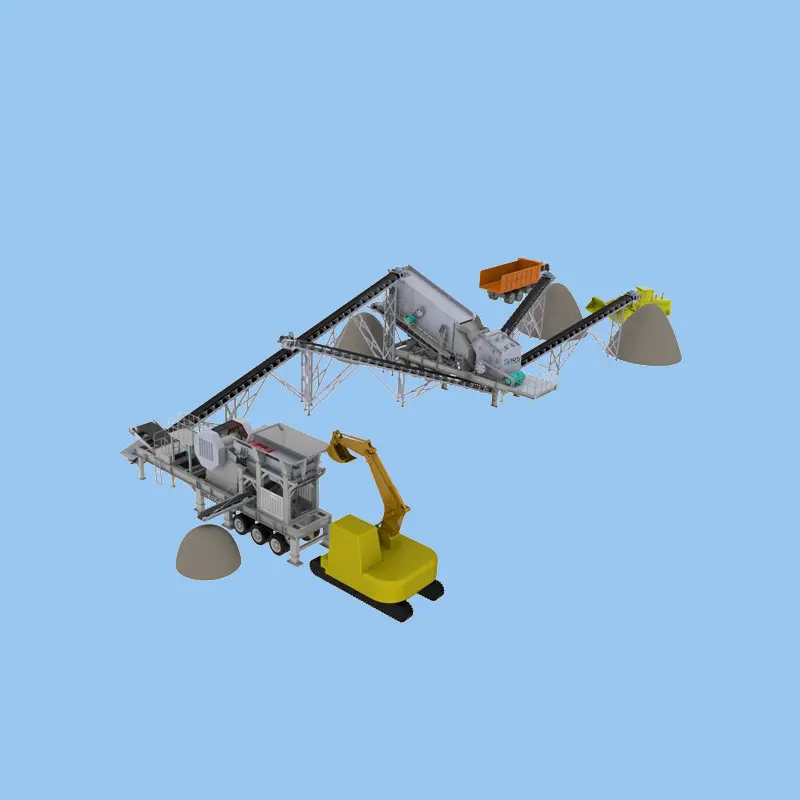

The mobile impact /hammer crushing station unit can also be combined with the coarse crushing mobile crusher or other coarse breaking equipment (jaw crusher, etc.) according to the specific needs for secondary crushing, timely processing of materials.
Technical parameters of S series mobile impact crusher / hammer crusher
| Model | Vibrating feeder model | Jaw crusher model | Max feeding size(mm) | Capacity (t/h) | Dimension (mm) |
| S-4211-1315 | ZSW420×110 | PF1315 | 500 | 90-220 | 11900×2680×4590 |
| S-4211-250 | ZSW420×110 | LF-250 | 500 | 100-250 | 11900×2580×4890 |
| S-4211-1512 | ZSW420×110 | PCZ1512 | 600 | 90-320 | 12300×2780×5060 |
