PCZ Series Heavy Duty Hammer Crusher - Industrial Strength Crushing

Crushing Equipment

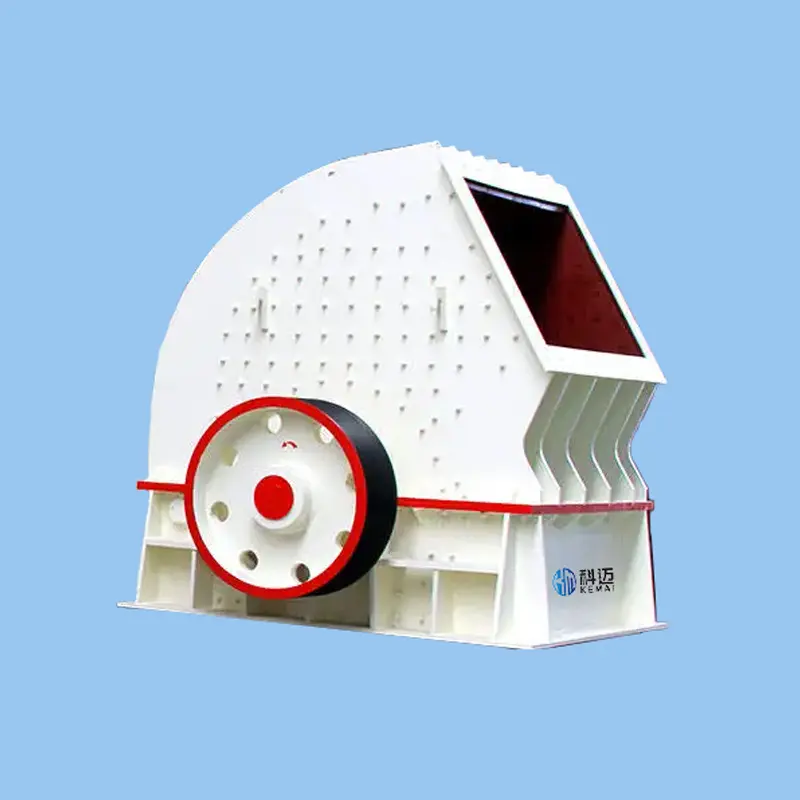

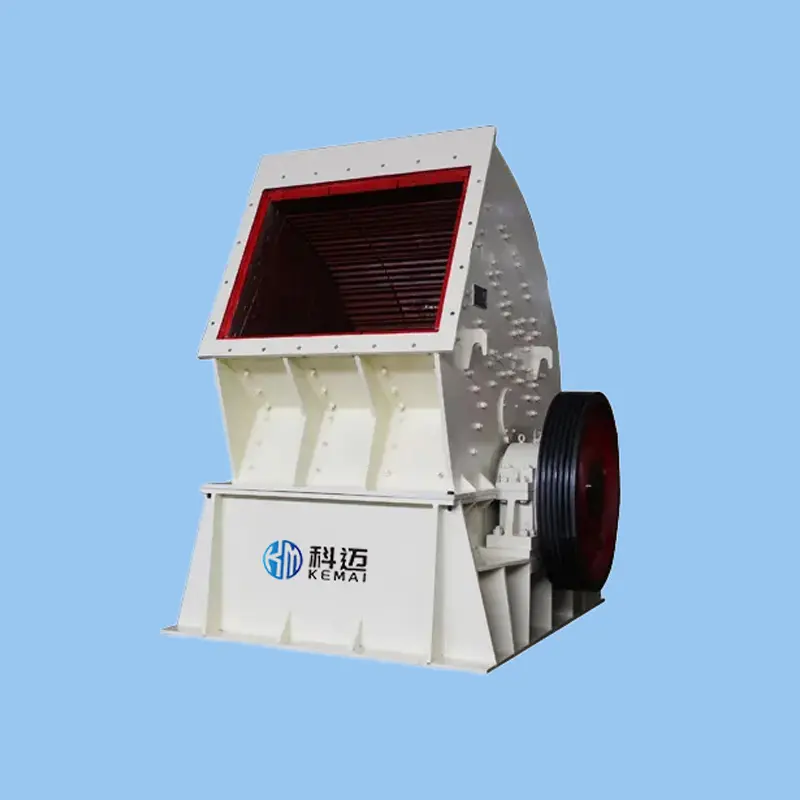

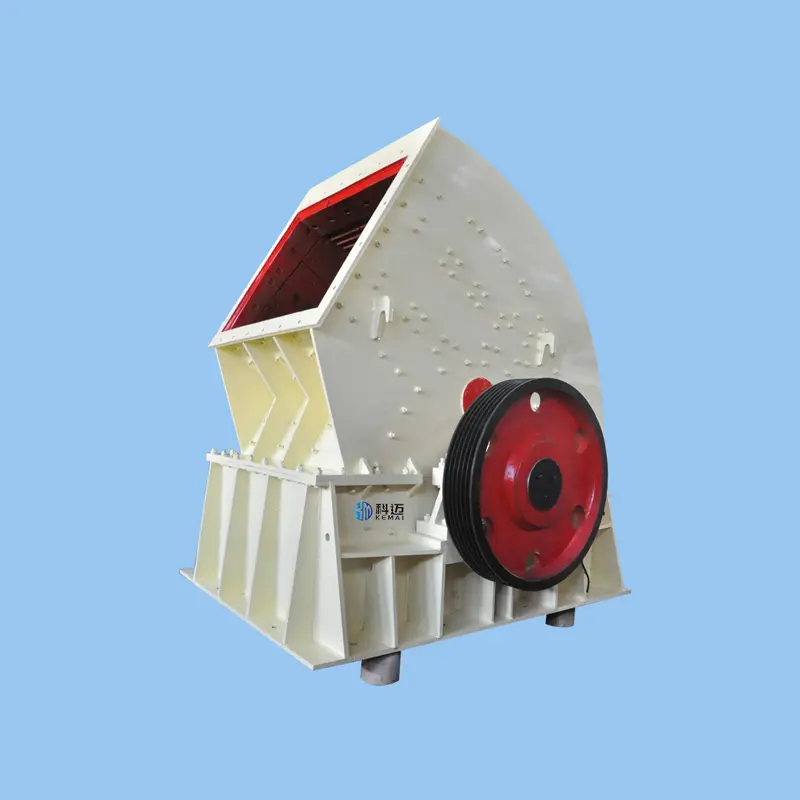

PCZ Series Heavy Duty Hammer Crusher - Industrial Strength Crushing

Kemai PCZ series heavy duty hammer crusher is one of the crushing equipment, the industry hammer crusher series of technology is more advanced a kind of equipment, the use of advanced production technology, to achieve a feeding molding, with high efficiency, energy saving and environmental protection characteristics. The finished material can be adjusted according to the demand, coarse, medium, fine, all kinds of specifications are complete; No sheet, no smooth body, multi-angle and multi-edge positive compressive strength. Especially suitable for highway, construction and large engineering materials. The crusher removes the initial breaking process of the E type machine, and becomes a new model for the completion of the crushing of large and small materials, with large output, high efficiency, small power, saving manpower and material resources, and reducing the crushing cost of materials. The stone broken by the machine is not only complete in specifications, but also uniform and clear, which is the replacement product of the old jaw breaking machine and the plate hammer breaking. This series of products is suitable for crushing all kinds of medium hardness and brittle materials. Such as limestone, coal and other materials. Mainly used in cement, mining, coal preparation, power generation, chemical and building materials industries.

    Working Principle

    Kemai PCZ series heavy duty hammer crusher can adjust the grate gap and change the discharge particle size according to the user's requirements to meet the different needs of different users. It has the characteristics of simple structure, large crushing ratio and high production efficiency, and can be used as dry and wet crushing equipment. The main working part of the machine is the rotor with a hammer (also known as the hammer head). The rotor consists of a spindle, a disc, a pin and a hammer. The motor drives the rotor to rotate at high speed in the crushing chamber. The material is fed into the machine from the upper feed port, and crushed by the blow, impact, shear and grinding of the hammer with high speed movement. In the lower part of the rotor, a screen plate is provided, and the particle grade of the crushed material less than the size of the screen hole is discharged through the screen plate, and the coarse particle grade larger than the size of the screen hole is blocked on the screen plate and continues to be hit and ground by the hammer, and finally discharged through the screen plate.


    Characteristic and features
    (1) With large feeding particle size, fine crushing ratio, high efficiency;
    (2) Simple structure, compact assembly, light weight;
    (3) Uniform product particle size, less crushed powder;
    (4) Easy maintenance, small wear;
    (5) Low power consumption advantages, is used as medium and fine crushing equipment.

    Technical parameters of PCZ series heavy duty hammer crusher(coarse crushing)

    Model Rotor spec(mm)  Feeding opening(mm) Max Feeding Size (mm)
    Crushing Capacity
    (t/h)
    Motor Power (kW) Dimension(mm)
    PCZ-1512 1500×1200 1200×900 ≤650 250-400 160Kw×2 3320×2520×2800
    PCZ-1615 1600×1500 1300×1200 ≤750 420-560 220Kw×2 3665×2915×2140
    PCZ-1815 1800×1500 1500×1200 ≤900 550--900 280Kw×2 3922×3110×3430
    PCZ-2015 2000×1500 1700×1300 ≤1000 600-900 315Kw×2 4020×3020×3450
    PCZ-1820 1800×2000 1500×1600 ≤1200 800-1500 800Kw 4320×3520×3650

    Technical parameters of PCZ series heavy duty hammer crusher(fine crushing)

    Model Rotor spec(mm)  Feeding opening(mm) Max Feeding Size (mm)
    Crushing Capacity
    (t/h)
    Motor Power (kW) Dimension(mm)
    PCZ-1213 1200×1300 1350×900 ≤200 250-350 160Kw×2 2970×2650×2580
    PCZ-1216 1200×1600 1500×900 ≤200 350-450 200Kw×2 3070×2840×2290
    PCZ-1220 1200×2000 1960×1200 ≤200 450--600 250Kw×2 3230×3380×3430
